Commercial Metal Panels Built for Strength

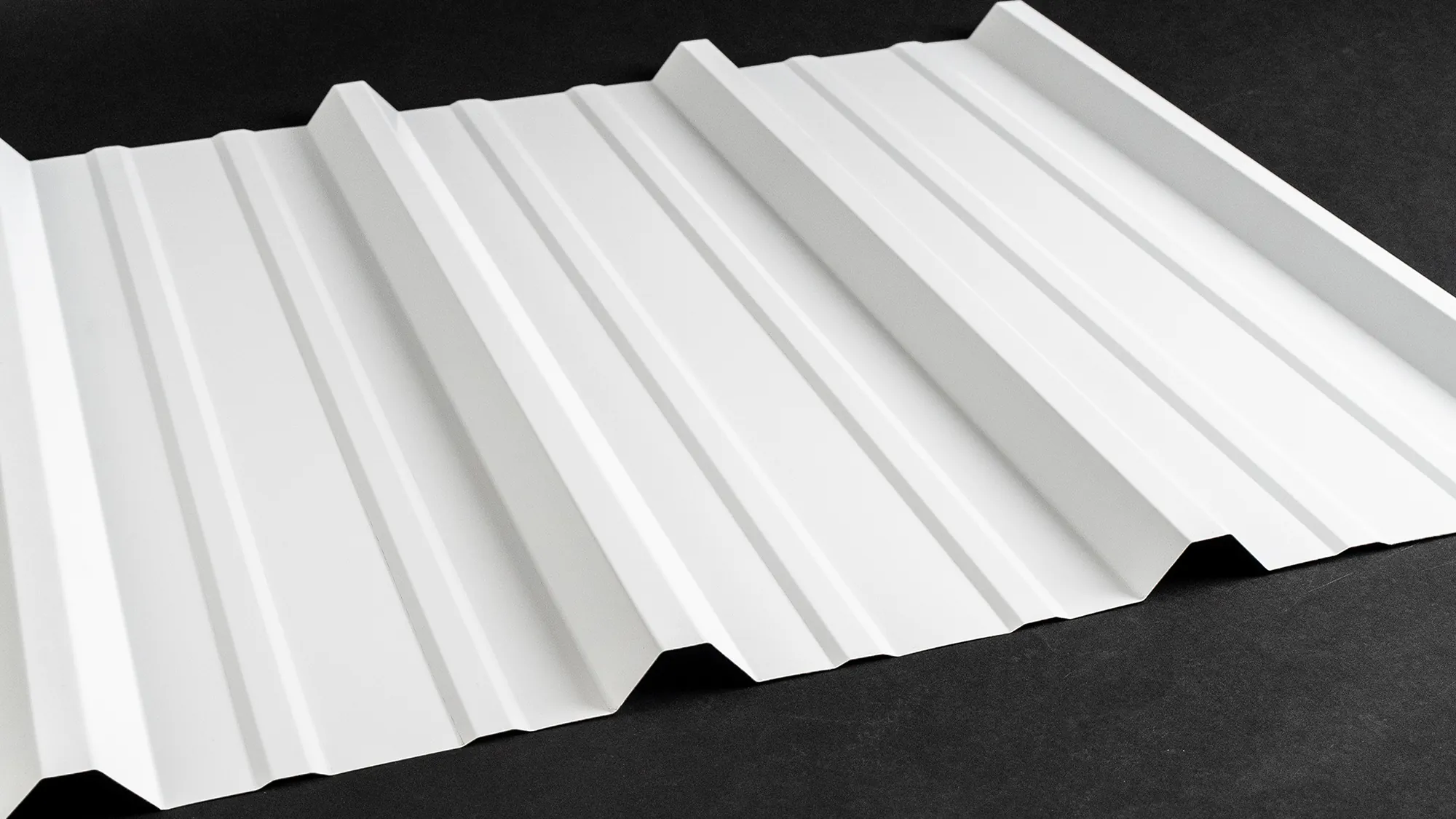

Commonly referred to as PBR-panels, R-Loc® 26-gauge commercial metal panels are an outstanding choice for any project that requires commercial grade performance. The panels have a larger section that completely overlaps the next panel. Consequently, this creates more metal to metal contact which yields a stronger connection and therefore are more weather-tight.

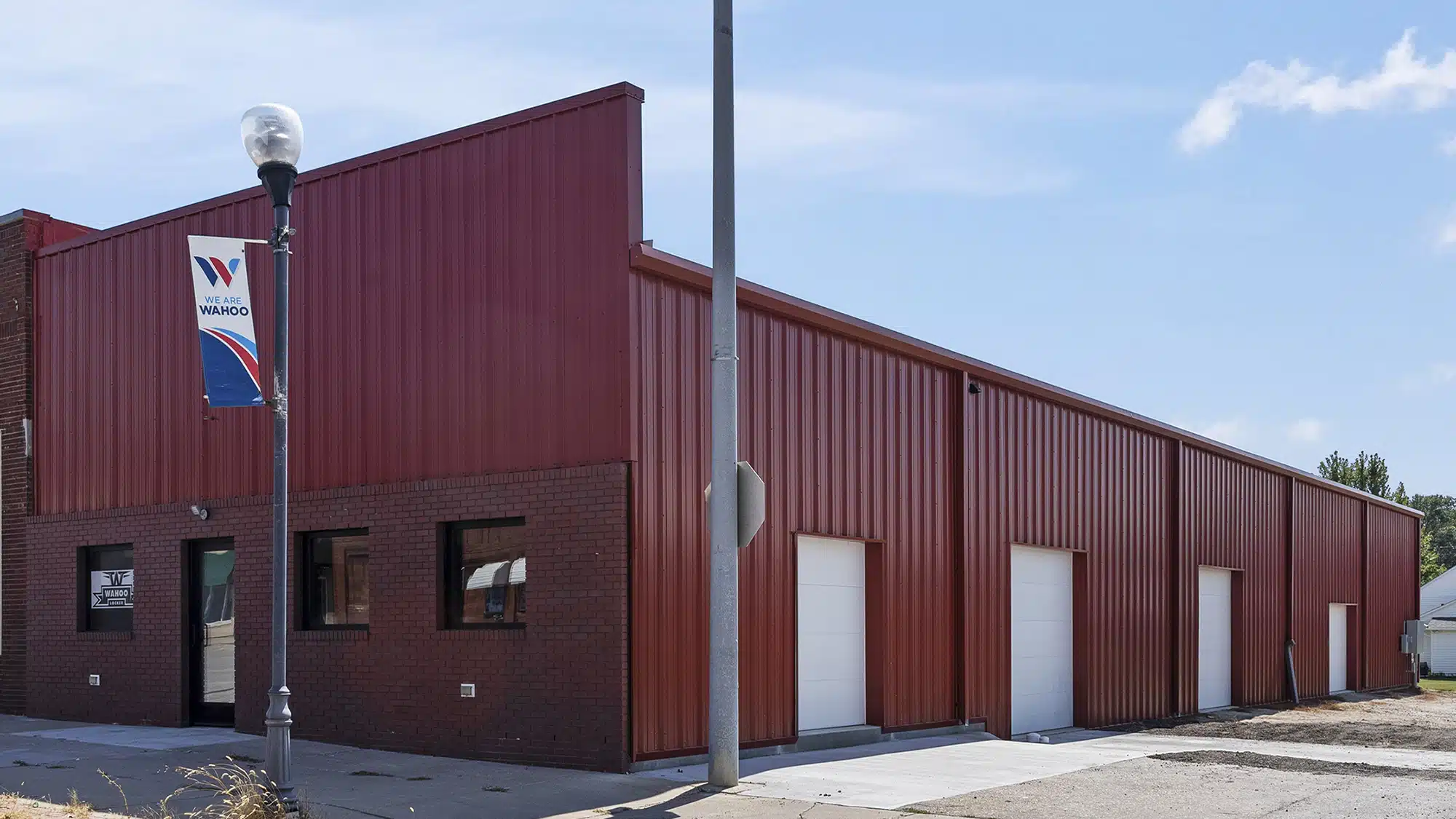

R-Loc® is designed for durability and strength and to maximize the potential of your structure, specifically the steel frame. These purlin-bearing rib (PBR) metal panels can be used for both walls and roofs, and can be installed either vertically or horizontally. As a result, whether used for roofing, siding or metal building projects, these commercial metal panels are an extremely popular choice.
APPLICATION: Roofing, Siding, Interior Projects, Buildings
FASTENER SYSTEM: Exposed

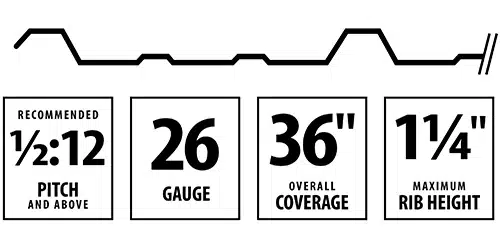

ROOF PITCH (minimum): 1/2:12
GAUGE: 26 gauge | 24 gauge*
PANEL COVERAGE WIDTH: 36″
RIB HEIGHT: 1-1/4″
DISTANCE FROM RIB-TO-RIB: 12″
STEEL THICKNESS: 0.0185″ | 0.023″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .35 mil
TOTAL THICKNESS: 0.0202″ | 0.0247″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50
STEEL STRENGTH: 80,000 PSI (26 ga.) | 50,000 PSI (24 ga.)
PAINT SYSTEM: SMP
TEXTURED COLORS AVAILABLE: No
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
- More info here
*24 ga. available in Polar and Galvalume (acrylic-coated bare) in select plants
R-Loc is a 26-gauge commercial panel, commonly known as PBR-panel, that offers exceptional commercial-grade performance. It is designed to optimize the potential of your structure, with a focus on the steel frame. With the added purlin bearing leg, R-Loc provides easier installation and a more pleasing appearance. Choose R-Loc for unmatched durability and strength.
- Industry standard configuration allows maximum purlin spacing for a cost-effective building.
- Available in 26 gauge painted or 26 and 24 gauge acrylic Galvalume® with 36″ coverage.
- These purlin-bearing rib (PBR) metal panels can be used for both walls and roofs, and can be installed either vertically or horizontally.
- Ideal for low-pitch commercial roofs. The recommended minimum roof slope for the 1.25″ R-Loc is a 1/2:12 pitch. This will allow for sufficient drainage of water. For added protection, a sealant tape can be used on the laps of the panel.
- Matching trims and accessories are available.
- Available in over 18 colors.
- Optional DripX condensation control for heightened protection.
When you buy metal roofing, siding, or buildings from us, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.
R-Loc comes with a Limited Lifetime warranty helping protect your investment in home or business.
