An Easy to Install Standing Seam Roof

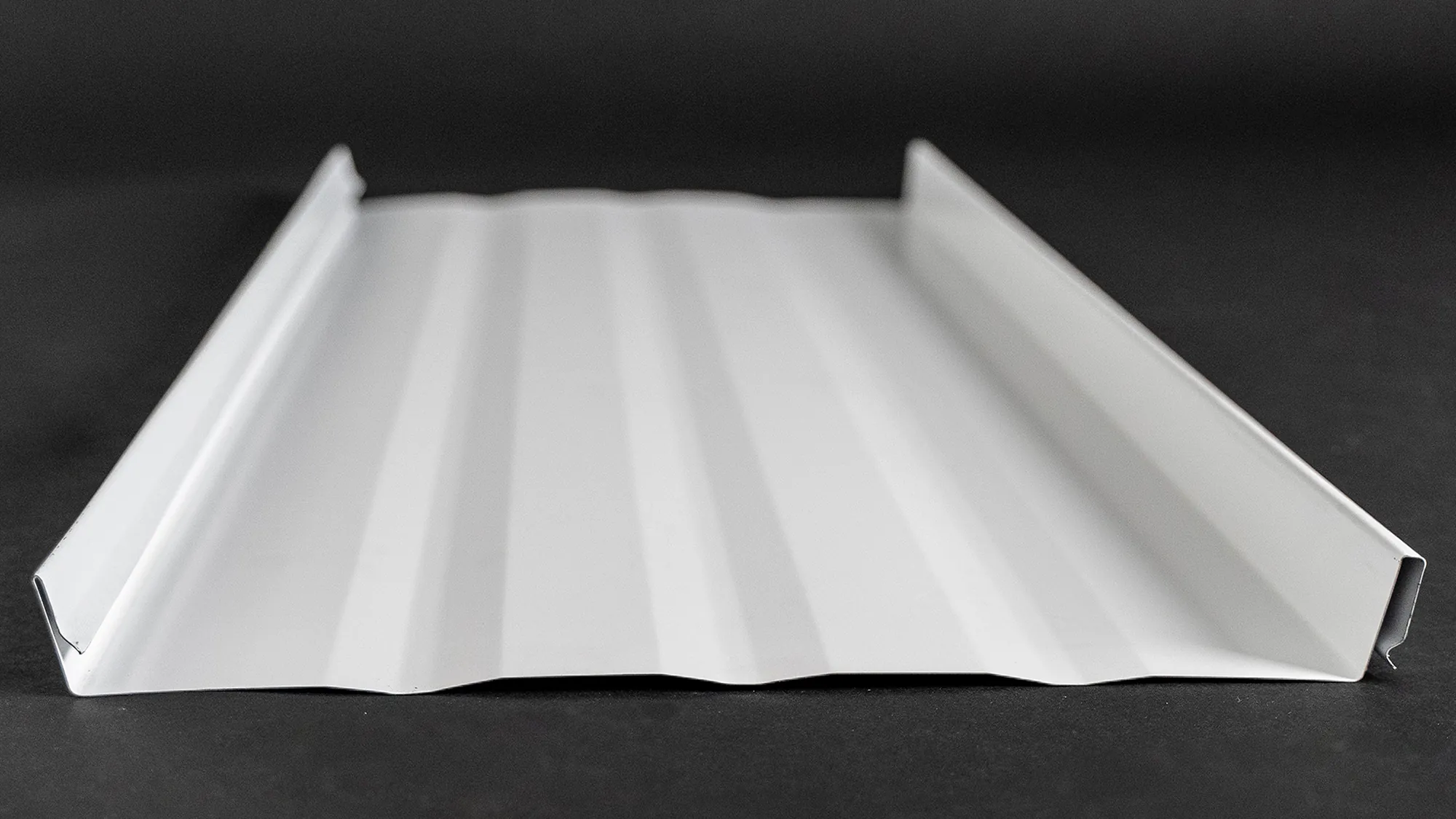

This standing seam metal panel snaps together, no seaming required, reducing installation labor and costs. Central Snap® is a performance-rated, non-structural system that offers an attractive architectural look for roofing projects.
It has an easy to install 1-3/4″ high snap-lock joint so no field seaming is required. Not only is it weather tight but also ideal for architectural and light commercial applications. Additionally, it is available with a 1-1/8″ notch on either end of the panel for the ease of turning under.
APPLICATION: Roofing and Buildings
FASTENER SYSTEM: Hidden
ROOF PITCH (minimum): 1:12
GAUGE: 24 gauge
PANEL COVERAGE WIDTH: 16″ or 18″
DISTANCE FROM RIB-TO-RIB: 16″ or 18″
RIB HEIGHT: 1-3/4″
STEEL THICKNESS: 0.023″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .20 mil
TOTAL THICKNESS: 0.02455″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50
STEEL STRENGTH: 50,000 PSI min
PAINT SYSTEM: Fluropon
TEXTURED COLORS AVAILABLE: No
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
Central Snap is a performance-rated, non-structural, standing seam roof system that offers a pleasing architectural look. It has an easy to install 1-3/4″ high snap-lock joint, making it ideal for architectural and light commercial applications.
- Snap-together panel, no field seaming required.
- Factory applied sealant insures a weather-tight and secure lap.
- Can be installed over solid decking or open framing, depending upon panel width and support member spans.
- Available with a 1-1/8″ notch on either end of the panel for the ease of turning under; reducing installation labor and costs.
Central Snap comes with a Limited Lifetime warranty helping protect your investment in home or business.
