BarnMaster

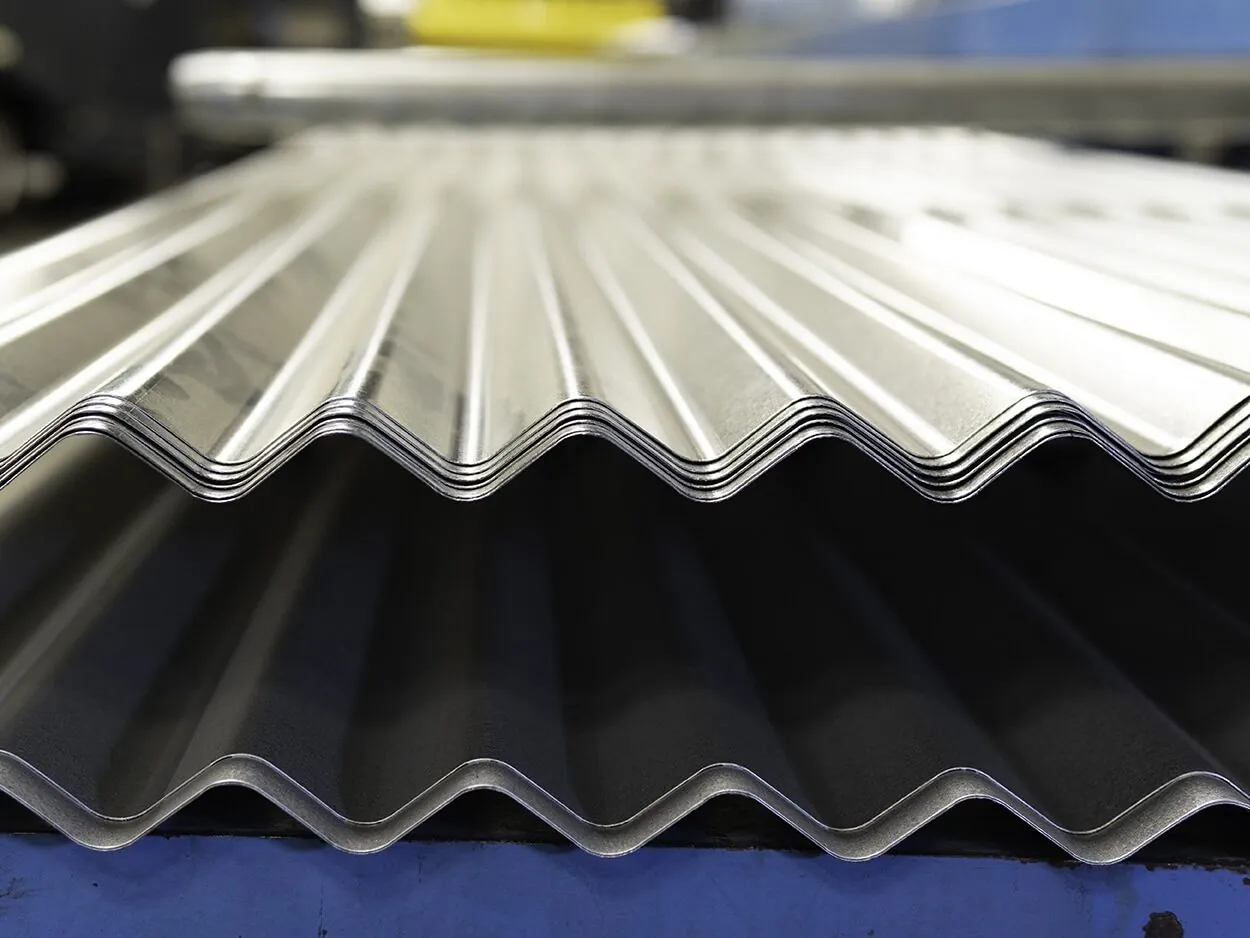

Traditional Corrugated Metal Panel

A Rustic Look with Lasting Performance

BarnMaster is the traditional corrugated metal panel for rustic applications on roofing, siding, and buildings.  It provides the strength and protection of metal panels with a traditional look at an affordable price. Consequently, this panel is perfect for agricultural and interior projects.

O'Neil Building and Supply|BarnMaster

APPLICATION: Roofing, Siding, Interior Projects, Buildings

FASTENER SYSTEM: Exposed

ROOF PITCH (minimum): 3:12

GAUGE: 29 gauge | 31 gauge

PANEL COVERAGE WIDTH: 24″

RIB HEIGHT: 1/2″

DISTANCE FROM RIB-TO-RIB: 2.67″

RUST PROTECTANT SUBSTRATE: Galvalume AZ55

STEEL STRENGTH: 29 ga. 80,000 PSI min

PAINT SYSTEM: Bare acrylic

TEXTURED COLORS AVAILABLE: No

WARRANTY

  • Clear acrylic finish with 45-year perforation warranty.

BarnMaster is the traditional metal panel for rustic applications. Its 2-1/2″ profile is perfect for agricultural and interior projects. This versatile profile can be applied as either a wall or roof covering

This panel is available in Cedar Hill, TX, Seguin, TX, and Lowell, AR coverage areas.

  • Available in minimum orders of 25. Only available in stock lengths between 6′ and 20′ in 2-foot increments.
  • Available in Galvalume AZ55 acrylic bare and Galvanized G30 acrylic bare.
  • Galvalume AZ55 acrylic bare (29 ga.) has a 25-year perforation warranty.
  • Galvanized G30 acrylic bare (31 ga.) has no perforation warranty.

BarnMaster is only available in Galvalume.

When you buy metal roofing, siding, or buildings from us, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.

Galvalume AZ55 carries a 25-year perforation warranty.
