A Smooth Performance Door That Will Last
Enjoy a stunning self storage roll up metal door that finishes out your storage building with style and lasting quality. As a 26 gauge steel door, the Central States Sentry™ Model 6500 Roll Up Door features the industry’s most common profile, ensuring widespread compatibility. Designed for quick install and easy adjustment, we’re sure that this roll up door will meet your customers expectations.
APPLICATION: Interior or Exterior
GAUGE: 26 gauge
DOOR WIDTH: defined by opening size, up to 10′ wide x 10′ tall
HEADROOM CLEARANCE REQUIRED:
- Up to 8′ tall door: vertical headroom 16″; horizontal headroom 18″
- Over 8′ up to 10′ tall door: vertical headroom 18″; horizontal headroom 20″
SIDEROOM CLEARANCE REQUIRED:
- Guide: 2″ clearance
- Each bracket leg: 3-1/4″ clearance
- End of Axle: 3-1/2″ clearance
CURTAIN
- 26 gauge ASTM A653 SS80 class steel curtain available in a variety of colors.

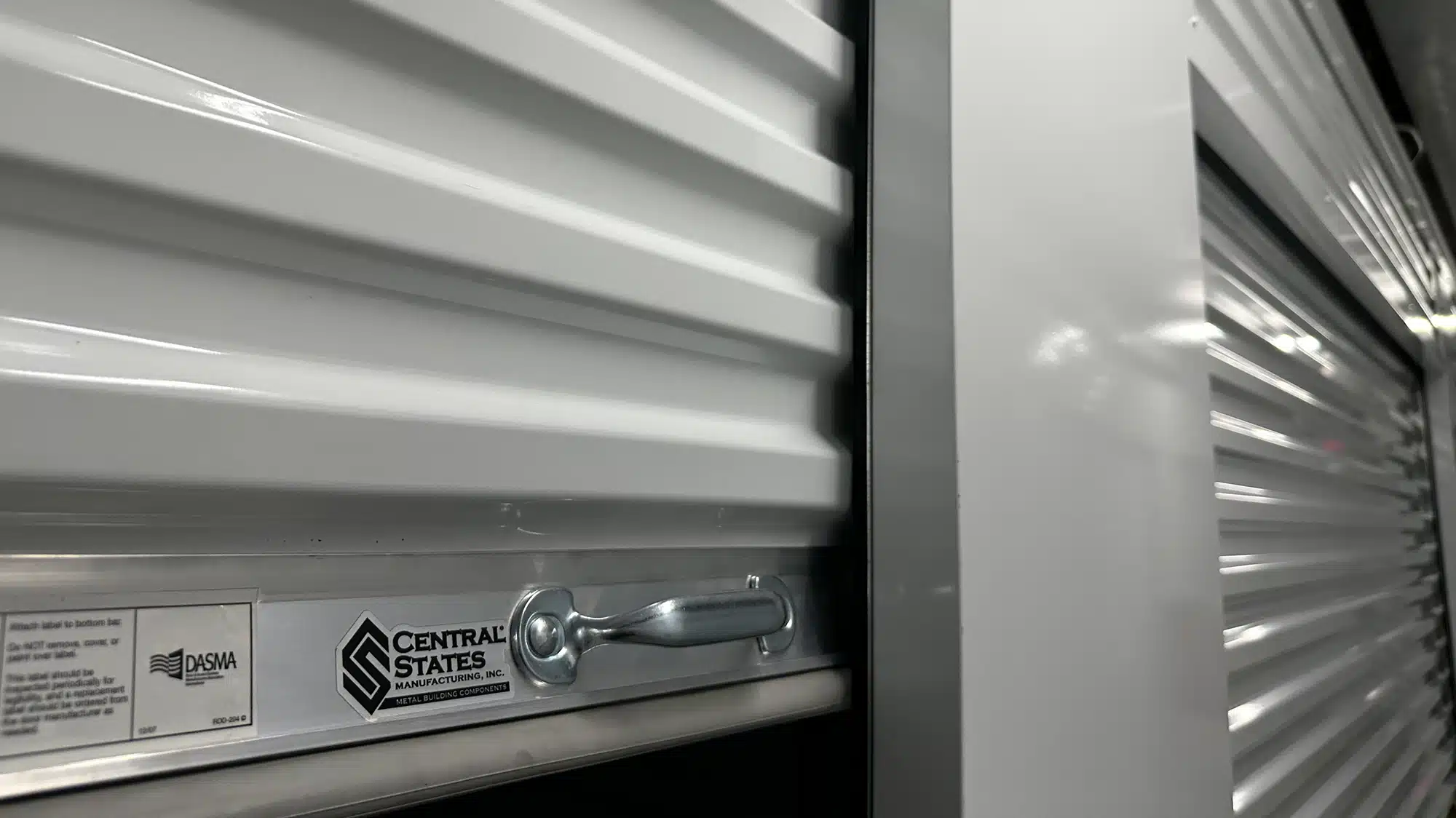

- Factory-applied 4-bolt stainless steel latch.
- 1” wide felt strip minimizes steel on steel touchpoints.
- Non-corrosive aluminum bottom bar features industry-standard astragal.

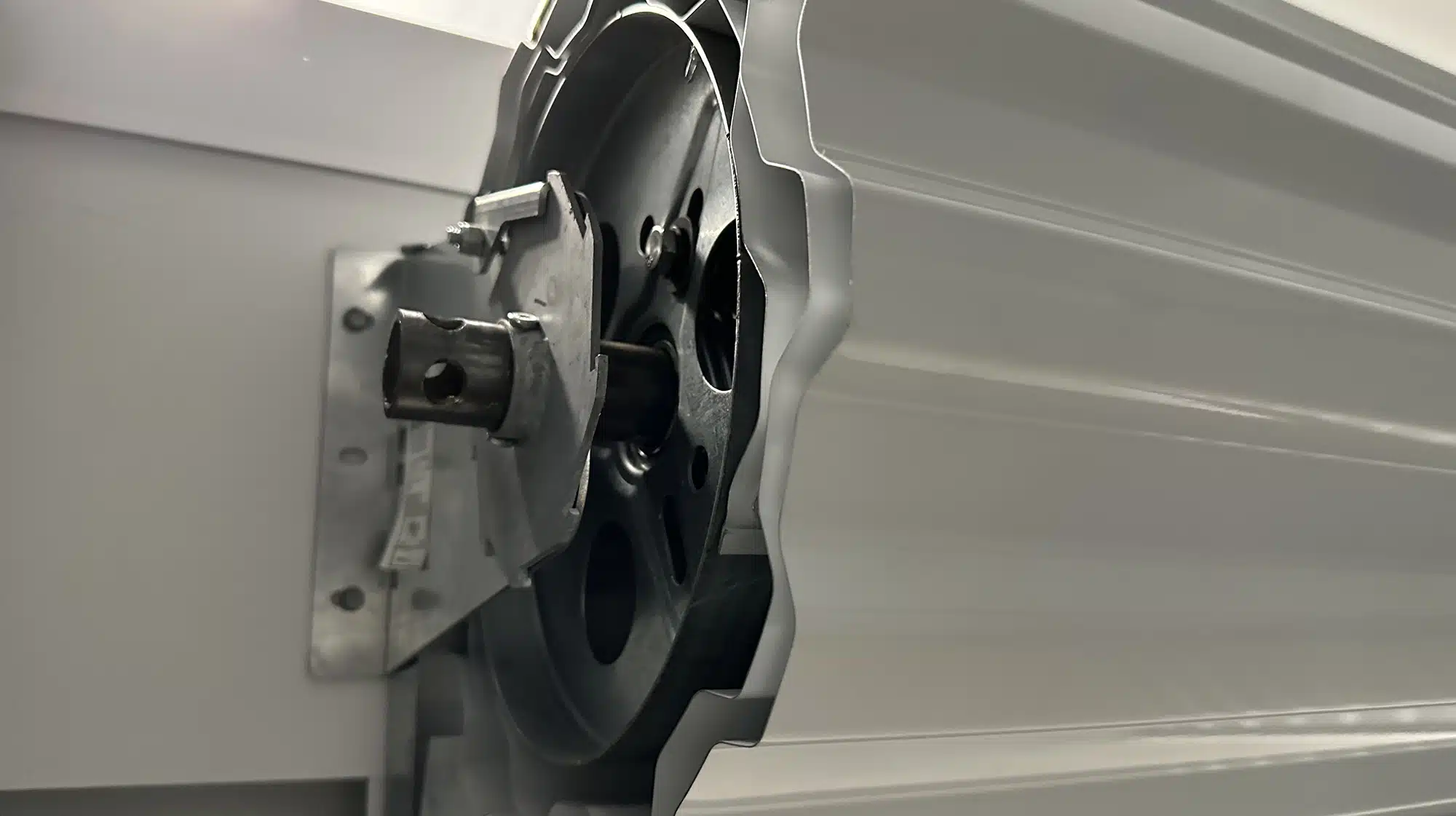

AXLE SPRING ASSEMBLY
- ASTM 228 high-carbon pre-galvanized steel alloy springs.
- Radial ball bearing drums for smooth operation.
- 11 gauge steel tube featuring a 3/8” winding bar slot to work with the factory-supplied tensioner for easy adjustments across dead axle design.
GUIDES
- 18 gauge galvanized universal mounted guides feature polyethylene strips to reduce friction and travel noise.
- Pre-punched holes for door jamb mount, latch, brackets, and stops.
HARDWARE
- 12 gauge factory assembled slotted brackets snap into guides, reducing installation time.
- Door stops prevent overtravel by directly contacting the bottom bar angle and door catch.
- ADA accessories for manual compatibility are available.
WARRANTY
- 40-year paint warranty.
- 3-year product warranty.
Central States offers a variety of educational tools for your use. We recommend reviewing the below documents when making your decision to buy the Central States Sentry™ Model 6500 Roll Up Doors.
Our 26 gauge curtain showcases the industry’s most common standard profile, ensuring widespread compatibility. The dead axle design, meticulously crafted for an extended lifespan, and the user-friendly tension device enables quick and easy adjustments. Suitable for interior and exterior applications, our doors boast a factory-installed stainless steel lock and a versatile hole pattern, seamlessly integrating with various industry Bluetooth lock mechanisms.
Central States Sentry™ Model 6500 Roll Up Doors come in a multitude of popular colors to complement your storage project. Find the color chart below.
Our products have been rigorously tested to make sure that they meet the highest standards of quality. We seek to meet, or exceed, the industry standards by focusing on quality control checks to ensure a consistent, reliable product. Contact your salesperson for details about testing for Roll Up Doors.
When you buy Central States Sentry™ Roll Up Doors, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times.
Sentry Doors come with a 3-Year product warranty and a 40-Year paint warranty.
