An Effective and Versatile Soffit and Wall Panel

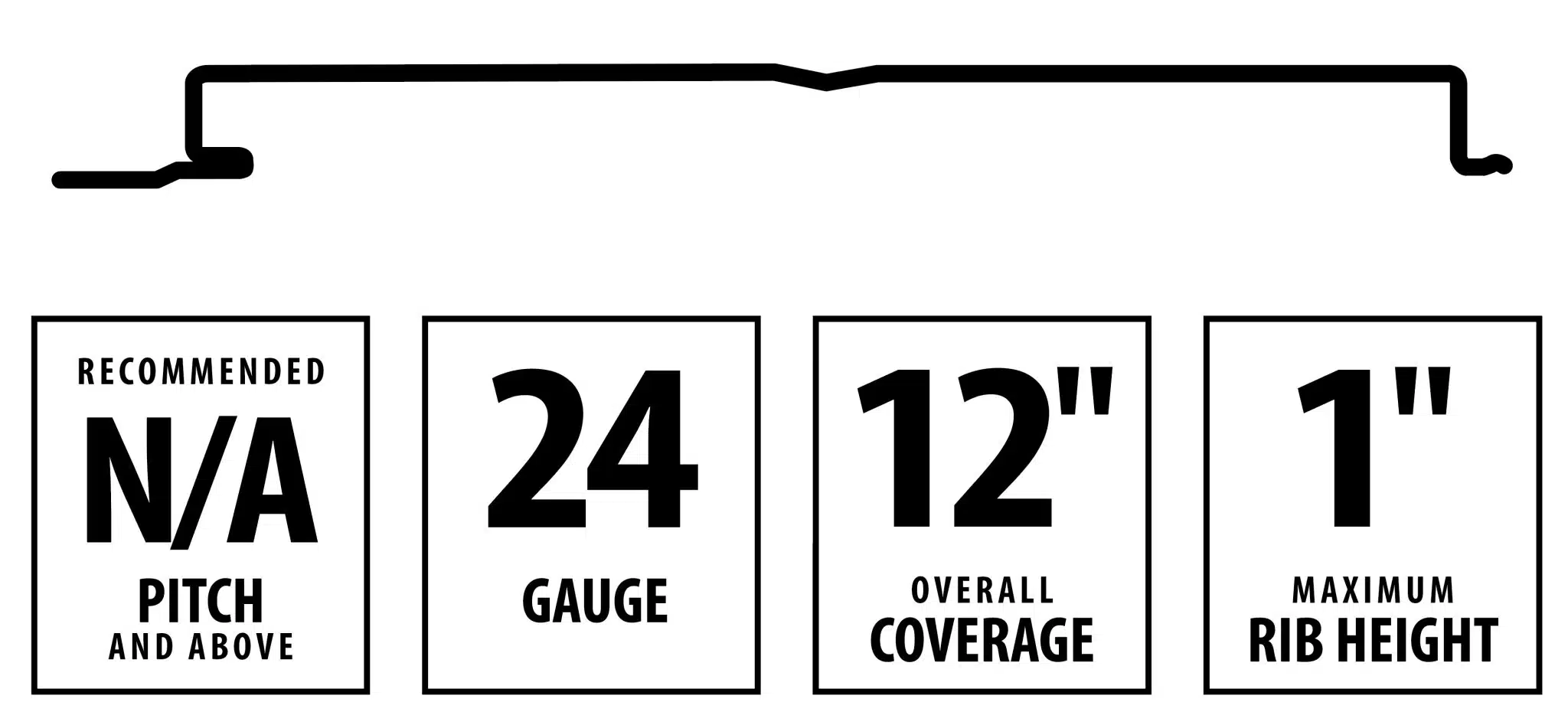

Precision-Loc™ is a concealed-fastener metal siding panel with clean lines that complement a building’s eaves and walls. The 12″ width offers flexibility in design and is available in four options – solid or vented and either flat or one “v” groove.
APPLICATION: Siding, Soffit, Interior Projects, Buildings
FASTENER SYSTEM: Hidden
GAUGE: 24 gauge
PANEL COVERAGE WIDTH: 12″
RIB HEIGHT: 1″
STEEL THICKNESS: 0.023″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .35 mil
TOTAL THICKNESS: 0.0247″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50
STEEL STRENGTH: 50,000 PSI min
PAINT SYSTEM: Fluropon
TEXTURED COLORS AVAILABLE: No
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
Precision-Loc is designed to beautify your building soffits. The 12″ width soffit and siding panel offers flexibility in design. Precision-Loc is available in a solid or vented panel, with one rib (perforated or solid), and solid flat (no ribs).
- Precision-Loc is available in 24 gauge.
- Excellent 1″ deep soffit panel.
- 12″ wide panel with interlocking seam.
- Smooth finish or with one “V” groove.
- Uses concealed fastener system and fastens directly to the sub-structure.
- FEVE (Fluorinated Polymer Paint System) paint system.
When you buy metal roofing, siding, or buildings from us, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.
Precision-Loc comes with a Limited Lifetime warranty helping protect your investment in home or business.
