Superior Durability with an Attractive Appearance
When looking for metal panels for residential, agricultural, and light commercial buildings, look no further than Panel-Loc Plus®. Not only does it provide the protection of steel with an attractive appearance but also features an extra striation on top of the rib to give it superior durability and protection against extreme weather.
Additionally, Panel-Loc Plus is versatile with the ability to be used on a roof or walls as siding and is available in three qualities: Standard, Prime, and Ultra.
Our metal offerings are fire-resistant, termite-proof, and available in a variety of styles.
APPLICATION: Roofing, Siding, Interior Projects, Buildings
FASTENER SYSTEM: Exposed
ROOF PITCH (minimum): 2-1/2:12
GAUGE: Ultra 26 gauge | Prime 29 gauge
PANEL COVERAGE WIDTH: 36″
RIB HEIGHT: 3/4″
DISTANCE FROM RIB-TO-RIB: 9″
STEEL THICKNESS: Ultra 0.0185″ | Prime 0.0150″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .35 mil
TOTAL THICKNESS: Ultra 0.0202″ | Prime 0.0167″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50
STEEL STRENGTH: 80,000 PSI min
PAINT SYSTEM: SMP
TEXTURED COLORS AVAILABLE: Yes
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
- More info here

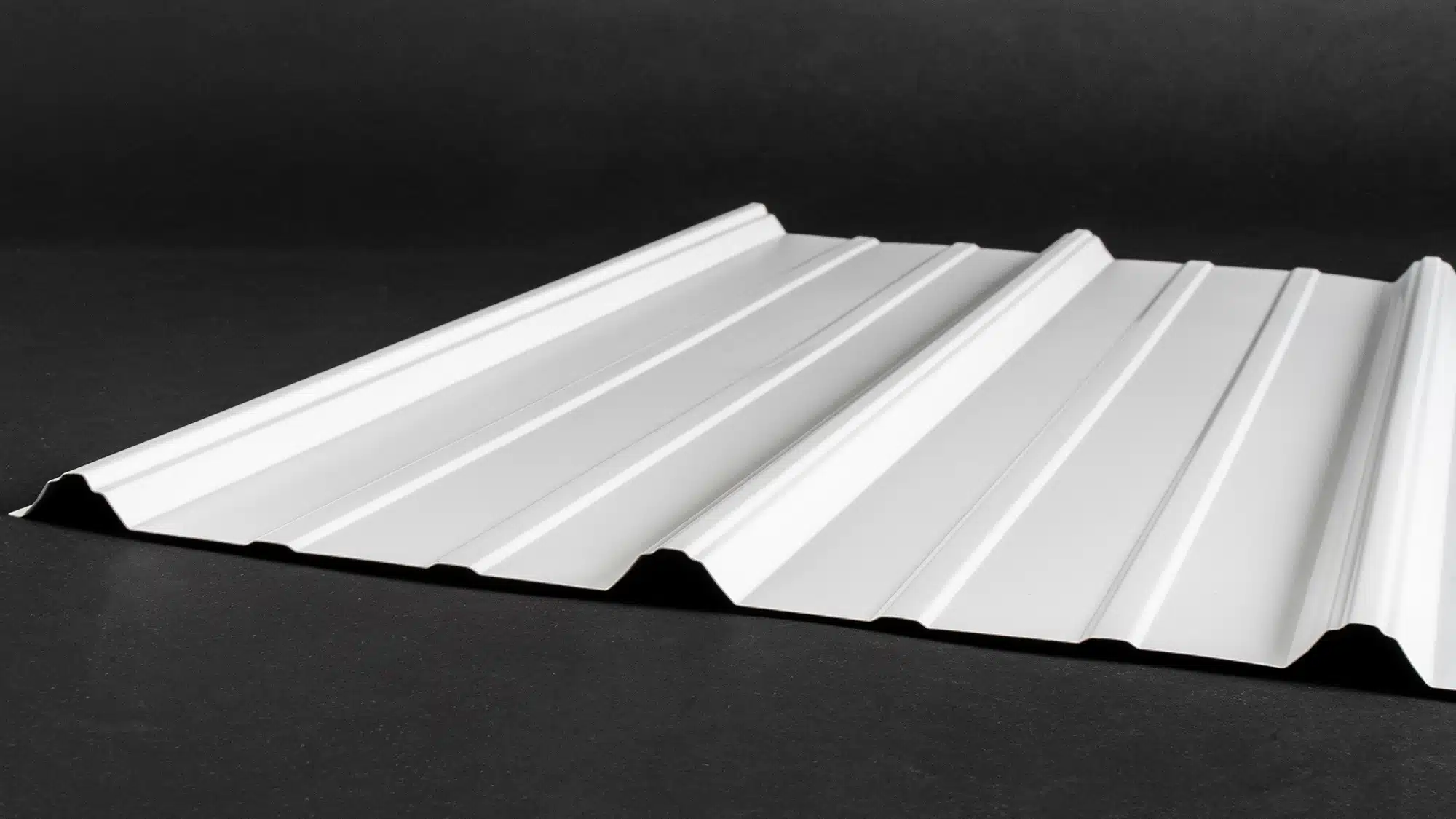

Panel-Loc Plus is our most popular and versatile panel! It gives residential, agricultural, and light commercial projects the protection of steel with an attractive appearance. There is an extra striation on top of the rib to give it superior durability and protection against extreme weather. Panel-Loc Plus’s versatility means it can be used on a roof or walls as siding and is available in three qualities: Standard, Prime, and Ultra.
Ribbed metal panels like Panel-Loc Plus have been a staple for decades for pole barns, storage sheds, utility buildings, and light commercial construction. This exposed fastener, bell-top rib metal panel applies over open framing or solid substrate for multiple applications: roof, siding/walls, liner, soffit, interior ceiling, fencing, skirting, and many others.
- Available in 29 and 26 gauge.
- Panel-Loc plus comes in panels with 36″ coverage with a distance of 9” in between its ¾” ribs.
- All panels are SMP paint and come in a variety of colors. Standard panels feature a 40-year paint warranty. See what colors are available in your area.
- Engineered with a Siphon Groove to minimize leaks.
- Wide fastening surface for easy application.
- Unique lap groove hides the overlap, giving a smooth, clean appearance.
- Bare (non-painted) Galvalume® and galvanized panels from Central States have an acrylic coating which eliminates using oils during manufacturing and eliminates fingerprinting and foot marking during installation.
- The minimum roof slope for the 3/4″ Panel-Loc Plus™ is 2-1/2:12. If slopes less than 3:12 are needed, International Building Code (IBC) allows a sealant tape to be used on the laps of the panel.
- Optional DripX condensation control for heightened protection.
Horizon-Loc is ideal for residential roofing or siding and light commercial applications applied over solid decking, and its durability ratings may lower insurance rates to save you money. Extra protection from leaks, no hand-seaming, and lower insurance rates make Horizon-Loc the perfect panel for a wide variety of projects.
- Installs over solid decking with 30lb. felt paper or equivalent.
- Available in painted AZ50 Galvalume or AZ55 acrylic coated Galvalume.
- Matching trims and accessories in both hidden or exposed fastener style.
- Comes in over 20 colors with several in a textured matte finish.
- Optional DripX condensation control for heightened protection.
Our metal offerings are fire-resistant, termite-proof, and available in a variety of styles. In addition to this, we also offer CentralGuard to protect your project and investment whether it is for a metal roof or exterior cladding.
When you buy metal roofing, siding, or buildings from us, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.
Panel-Loc Plus comes with a Limited Lifetime warranty to help protect your investment in your home or business.
