A Classic Post Frame Metal Panel
Panel-Loc®, the classic post frame metal panel, gives both agricultural and light commercial projects the protection of steel with an attractive appearance. Panel-Loc is a popular choice for roofing, siding, and metal building projects and is engineered with CentralGuard® protection against fade, dent, and rust.
Available in 26-gauge and 29-gauge metal panels, Panel-Loc is a reliable low-rib panel with an exposed fastener system for metal buildings and roofs.

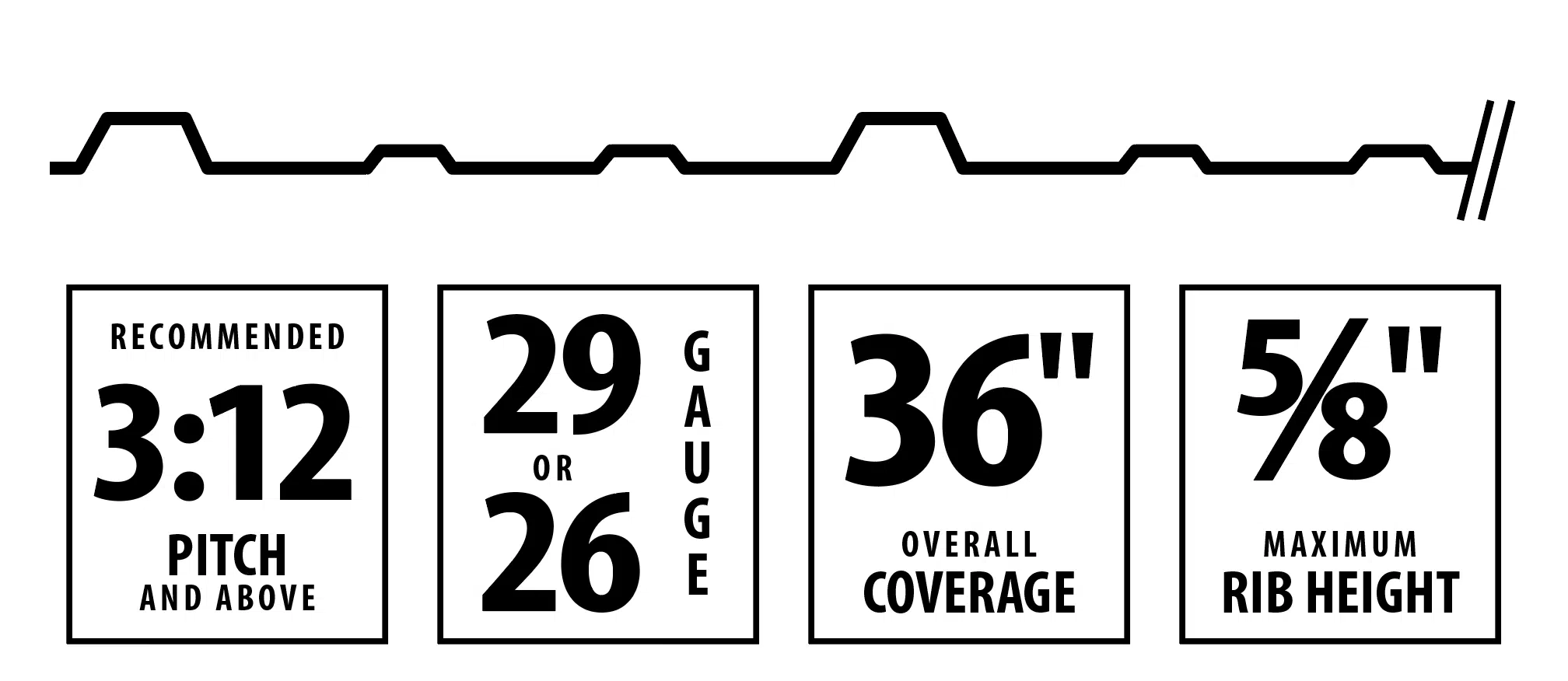

APPLICATION: Roofing, Siding, Interior Projects, Buildings
FASTENER SYSTEM: Exposed
ROOF PITCH (minimum): 3:12
GAUGE: Ultra 26 gauge | Prime 29 gauge
OVERALL COVERAGE WIDTH: 36″
RIB HEIGHT: 5/8″
DISTANCE FROM RIB-TO-RIB: 9”
STEEL THICKNESS: Ultra 0.0185″ | Prime 0.0150″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .35 mil
TOTAL THICKNESS: Ultra 0.0202″ | Prime 0.0167″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50
STEEL STRENGTH: 80,000 PSI min
PAINT SYSTEM: SMP
TEXTURED COLORS AVAILABLE: Yes (certain plants only, check with sales)
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
Panel-Loc™ is the classic panel for post frame barns and buildings. It is a reliable low-rib panel for metal buildings and roofs, giving agricultural and light commercial projects, as well as residential roofs, the protection of steel with an attractive appearance.
Our Panel-Loc metal panels are available in three qualities: Standard, Prime, and Ultra.
- Available in 26 and 29 gauge steel.
- Panel-loc comes with 36″ coverage; wide fastening surface for easy application.
- Engineered with a Siphon Groove to minimize leaks.
- Drain channel minimizes leaking and guards against wind, rain, and snow.
- Comes in over 20 colors with several in a textured matte finish.
- Customers may experience longer lead times as this panel is only produced in our Lowell, AR facility. Currently available in all locations except for Mount Airy, NC and Graniteville, SC
- Optional DripX condensation control for heightened protection.
When you buy metal roofing, siding, or buildings from us, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.
Panel-Loc comes with a Limited Lifetime warranty to help protect your investment in your home or business.
