Superior Durability that Looks Good Too
Enjoy a stunning metal roof or exterior siding without a single screw showing using Horizon-Loc (H-Loc®). The hidden fasteners give you all the advantages of a standing seam roof at a lower cost. Additionally, both the metal roof and siding panels snap together making installation quick and easy without the need for mechanical seaming. As a result, you can save money on labor costs compared to traditional standing seam panels.
APPLICATION: Roofing, Siding, Buildings
FASTENER SYSTEM: Hidden

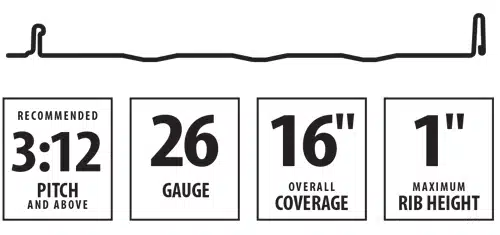

ROOF PITCH (minimum): 3:12
GAUGE: 26 gauge (24 gauge available in Texas)
PANEL COVERAGE WIDTH: 16″
RIB HEIGHT: 1″
DISTANCE FROM RIB-TO-RIB: 16″
STEEL THICKNESS: 0.0185″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .35 mil
TOTAL THICKNESS: 0.0202″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50 or AZ55 acrylic-coated
STEEL STRENGTH: 50,000 PSI min
PAINT SYSTEM: SMP
TEXTURED COLORS AVAILABLE: Yes
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
- More info here

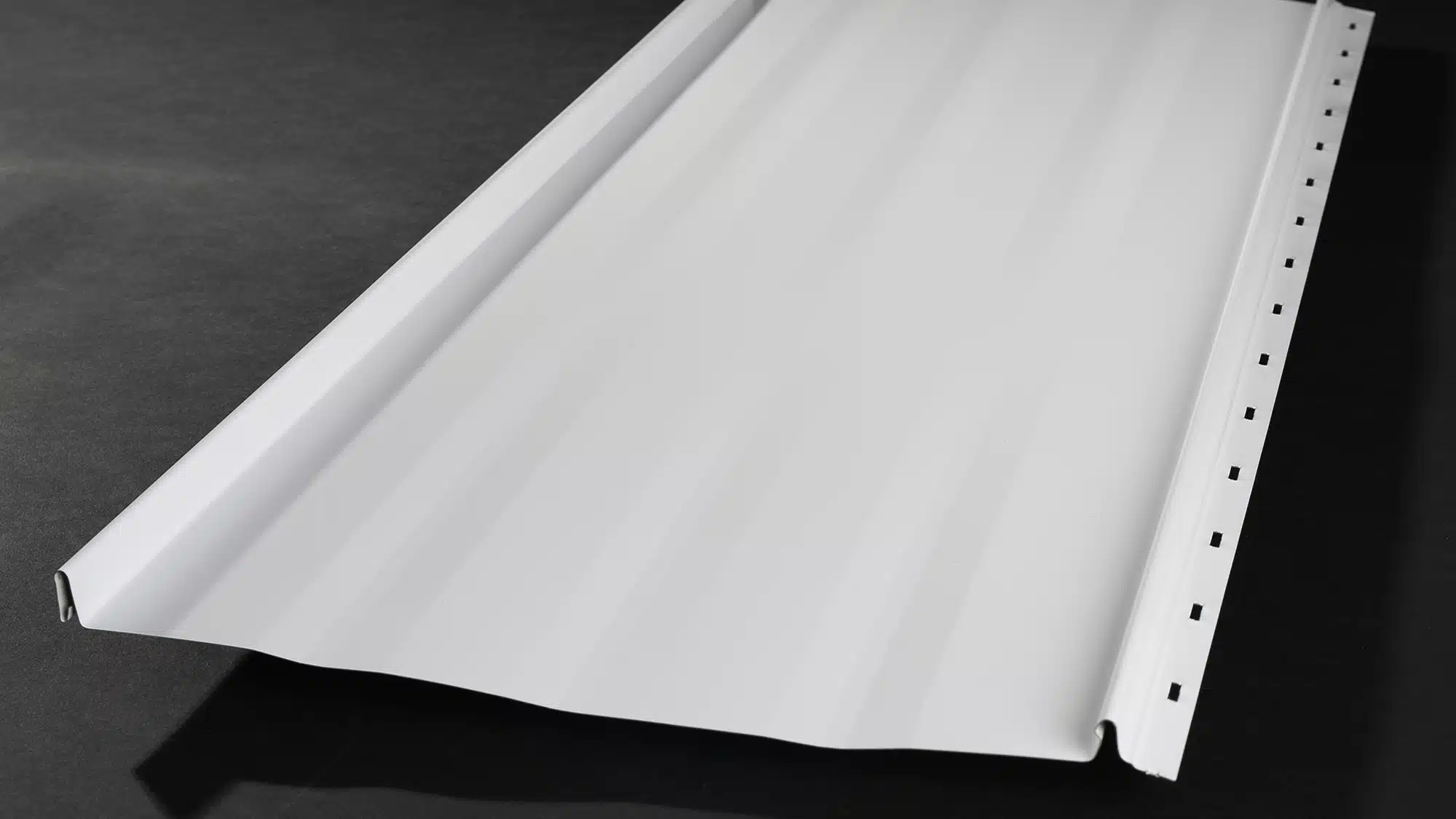

With Horizon-Loc (H-Loc®) you can enjoy a stunning metal roof or siding with no exposed fasteners (which means no screws show on the panels!). This gives you all the advantages of a standing seam roof at a lower cost. The panels snap together, making installation quick and easy, without the need for mechanical seaming. As a result, you can save money on labor costs compared to traditional standing seam panels.

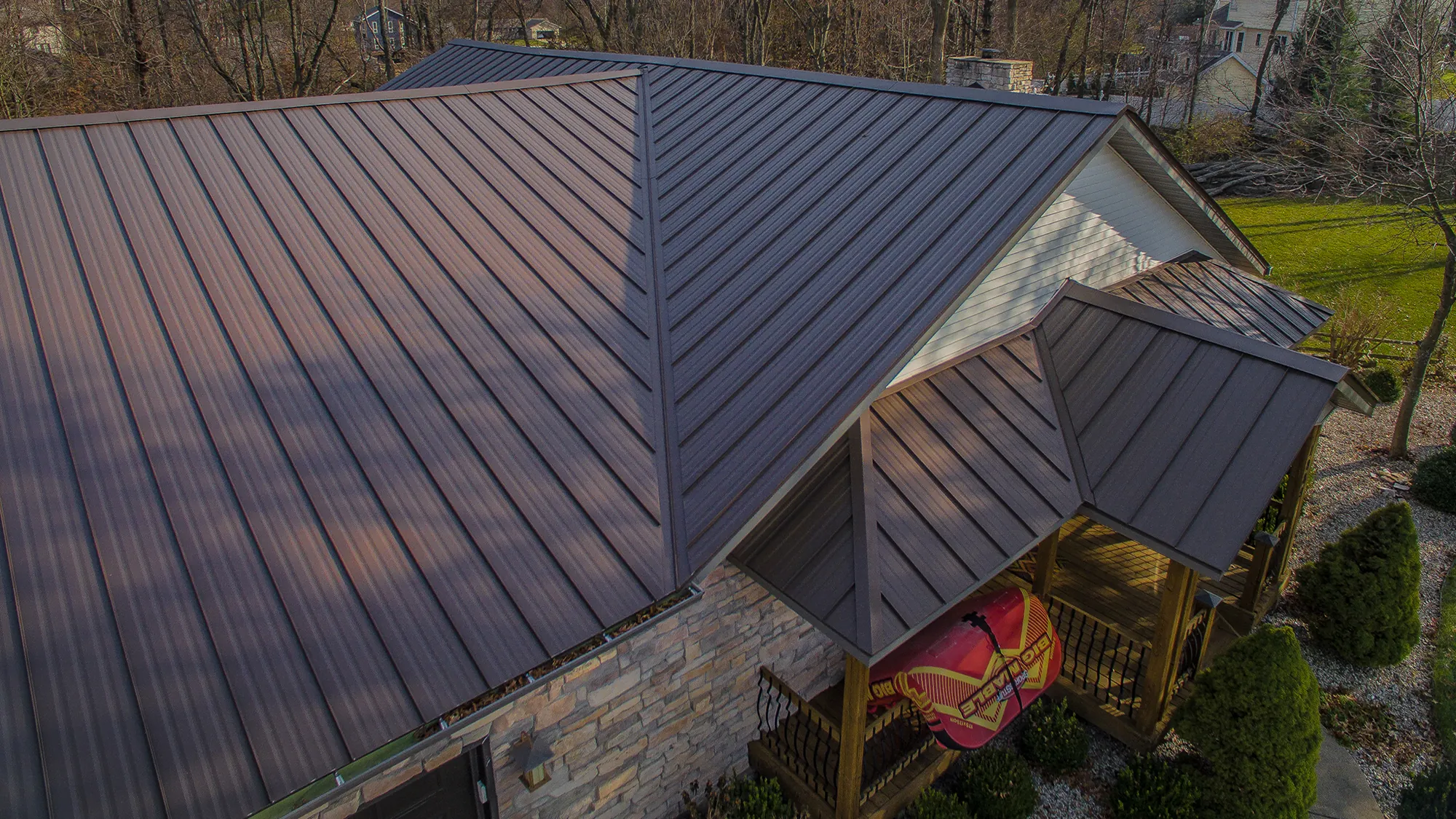

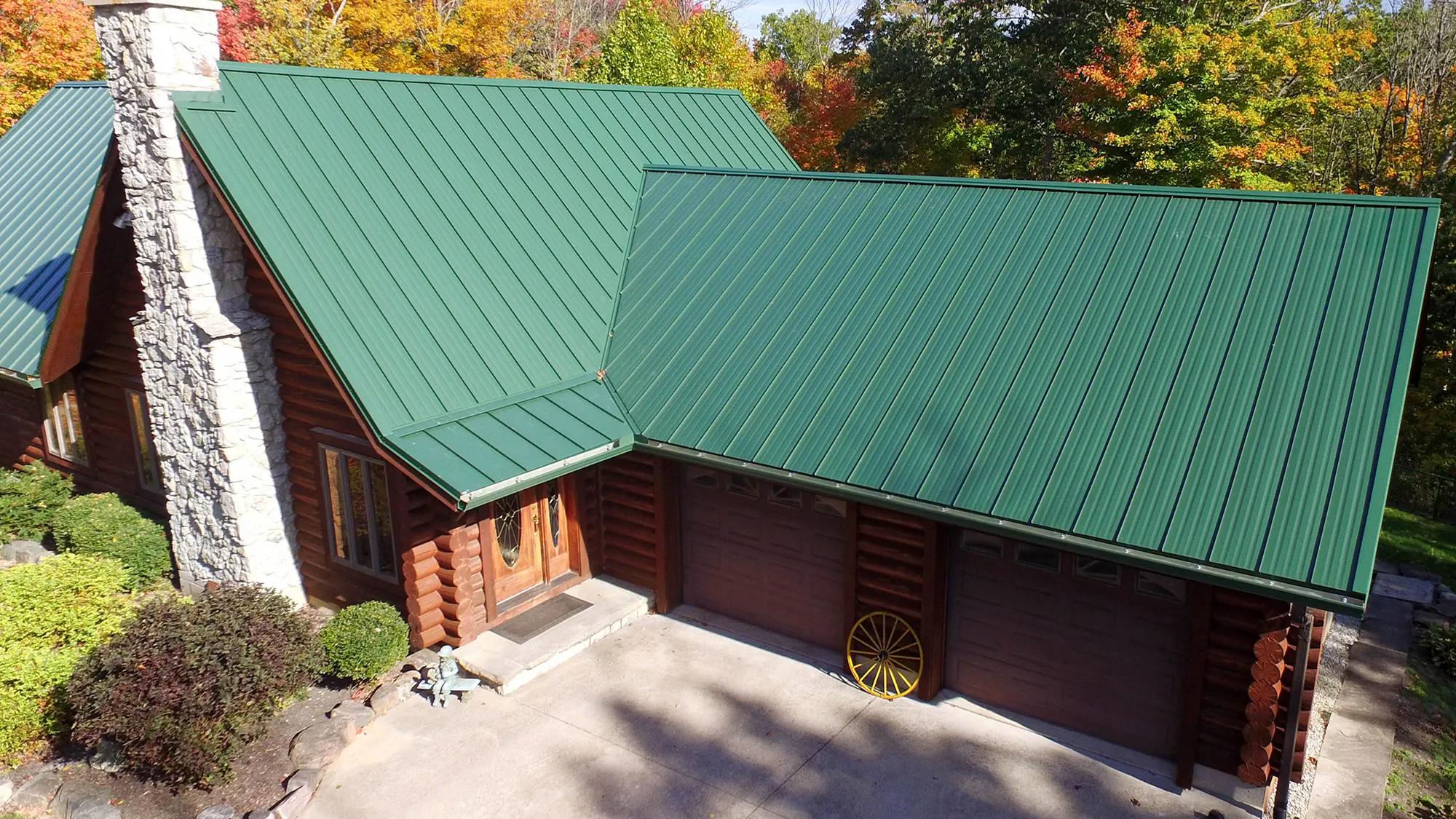

Horizon-Loc is ideal for residential roofing or siding and light commercial applications applied over solid decking, and its durability ratings may lower insurance rates to save you money. Extra protection from leaks, no hand-seaming, and lower insurance rates make Horizon-Loc the perfect panel for a wide variety of projects.
- Installs over solid decking with 30lb. felt paper or equivalent.
- Available in painted AZ50 Galvalume or AZ55 acrylic coated Galvalume.
- Matching trims and accessories in both hidden or exposed fastener style.
- Comes in over 20 colors with several in a textured matte finish.
- Optional DripX condensation control for heightened protection.
Our metal offerings are fire-resistant, termite-proof, and available in a variety of styles. In addition to this, we also offer CentralGuard to protect your project and investment whether it is for a metal roof or exterior cladding.
Horizon-Loc comes with a Limited Lifetime warranty helping protect your investment in home or business.
