Preferred by Architects for Superior Style

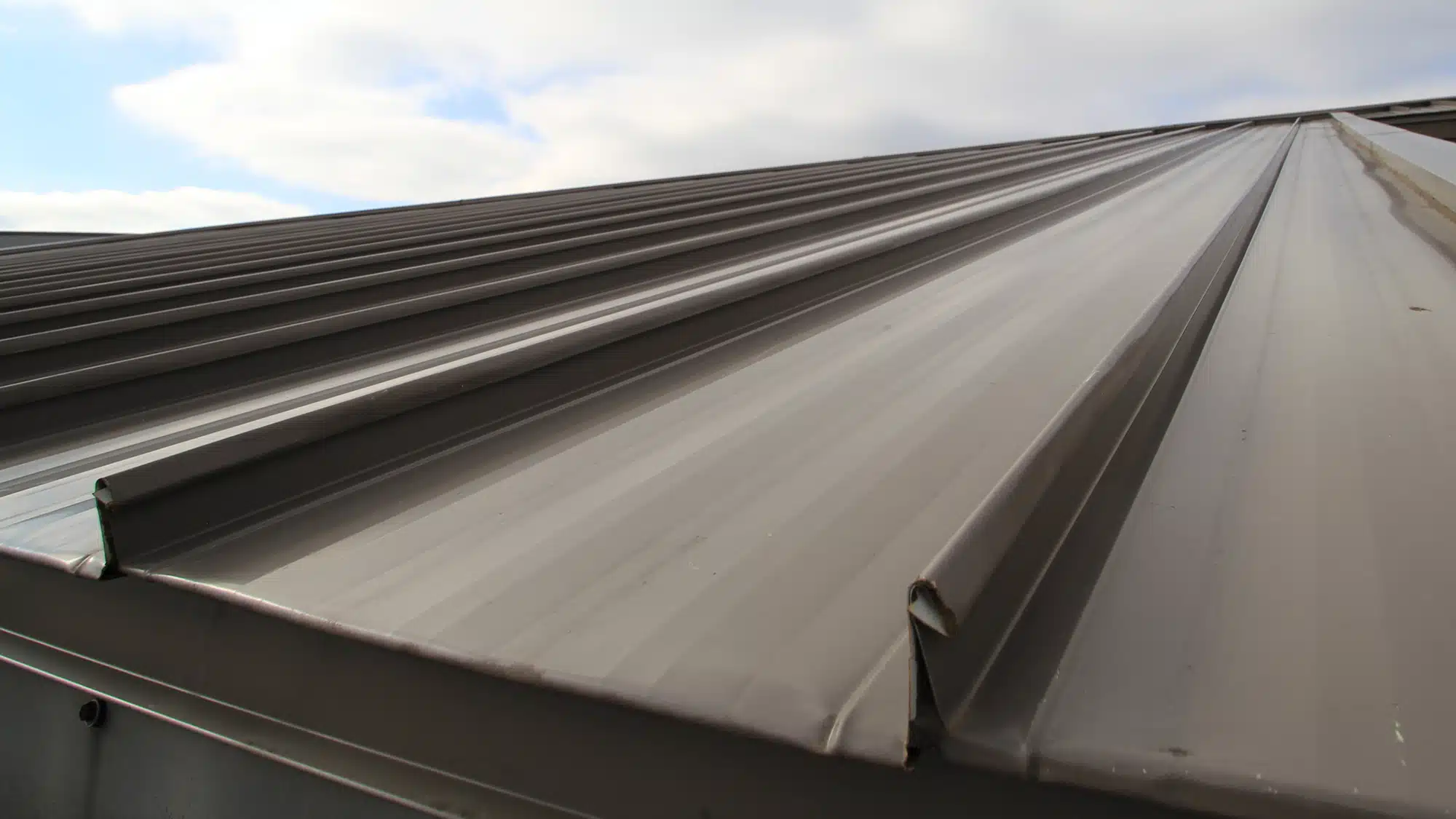

Central Span™ is a mechanically seamed metal panel. It has a standard flat pan with mild striations and a vertical rib, giving it an appearance often favored by traditional architects. The concealed fastener system is designed with clips that lined up and locked together by a mechanical seamer. As a result, it has one of the highest uplift ratings in the industry
Consequently, Central Span roofs meet the requirements for a wide range of roof slopes, shapes, loads, and weather related conditions.
APPLICATION: Roofing and Buildings
FASTENER SYSTEM: Hidden
ROOF PITCH (minimum): 1/4:12
GAUGE: 24
PANEL COVERAGE WIDTH: 16″
RIB HEIGHT: 2″
DISTANCE FROM RIB-TO-RIB: 16″
STEEL THICKNESS: 0.023″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .20 mil
TOTAL THICKNESS: 0.02455″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50
STEEL STRENGTH: 50,000 PSI min
PAINT SYSTEM: Fluropon
TEXTURED COLORS AVAILABLE: No
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation

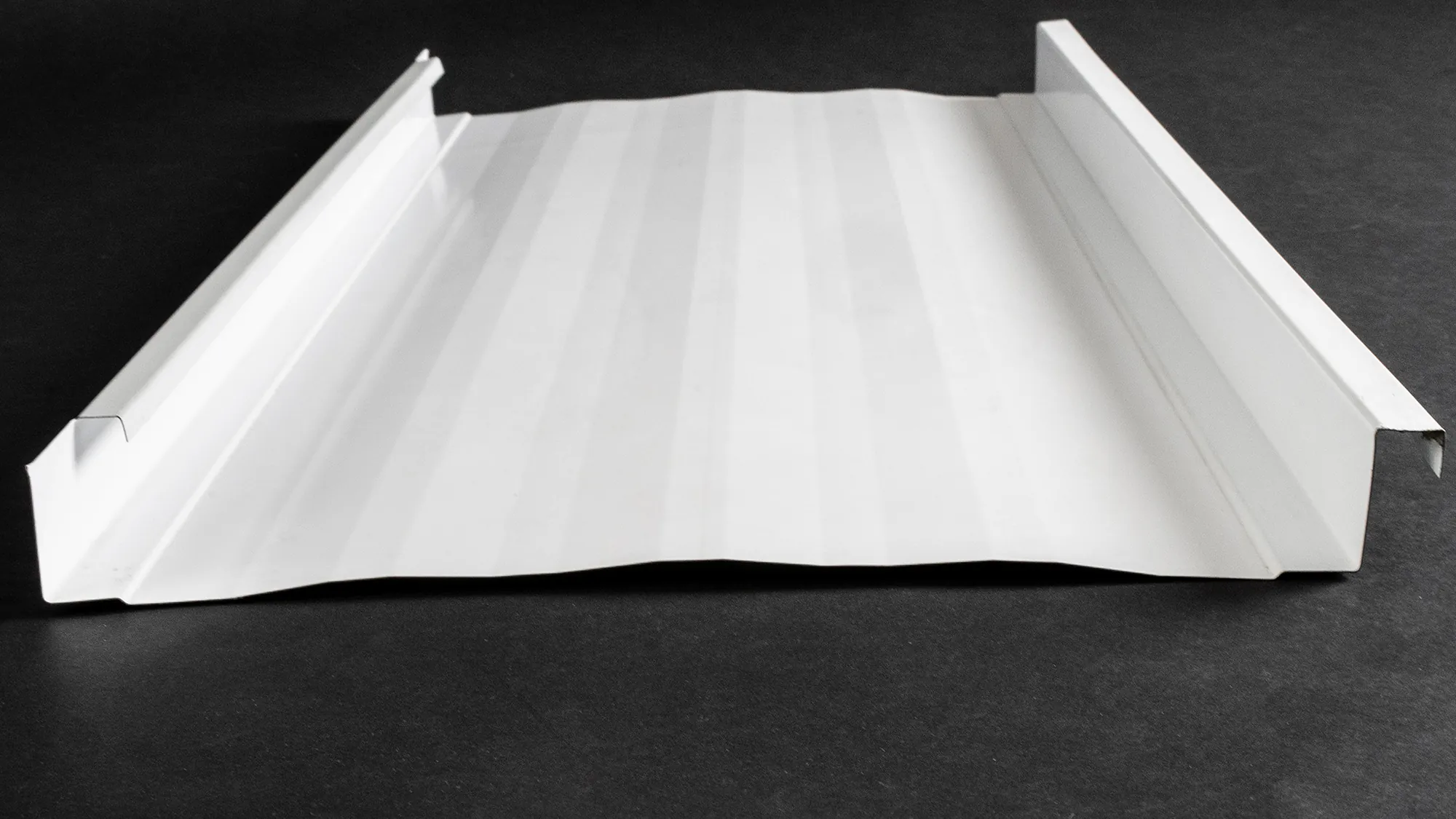

Central Span is a mechanically seamed metal panel. It has a standard flat pan with mild striations and a vertical rib, giving it an appearance often favored by traditional architects.
Central Span roofs meet the requirements for a wide range of roof slopes, shapes, loads, weather and related conditions.
- 24 gauge with a coverage width of 16-inches.
- One of the highest uplift ratings in the industry.
- Factory applied sealant.
- Clip provides for thermal movement.
- Available in 90° or 180° seam.
Central Span comes with a Limited Lifetime warranty helping protect your investment in home or business.
