Ideal for Commercial and Industrial Applications

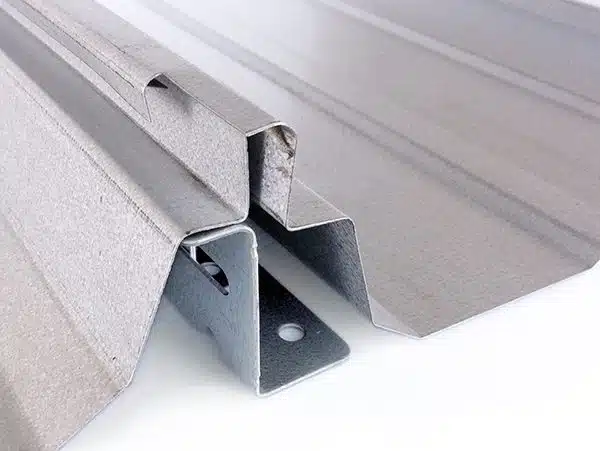

Central Seam Plus® is the best choice for a traditional seamed panel. It is an architectural metal panel perfect for commercial and industrial roofing applications that need the extra strength and durability of a mechanically seamed roof.
Pre-punched panels are available and self-engaging backup plates allow for easier installation.
APPLICATION: Roofing and Buildings
FASTENER SYSTEM: Hidden
ROOF PICTH (minimum): 1/4:12
GAUGE: 24 gauge
PANEL COVERAGE WIDTH: 18″ or 24″
DISTANCE FROM RIB-TO-RIB: 18″ or 24″
RIB HEIGHT: 3″
STEEL THICKNESS: 0.023″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .20 mil
TOTAL THICKNESS: 0.02455″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50
STEEL STRENGTH: 50,000 PSI min
PAINT SYSTEM: Fluropon
TEXTURED COLORS AVAILABLE: No
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
Central Seam Plus is an architectural metal panel perfect for economical commercial and industrial applications that need the extra strength and durability of a mechanically seamed roof. This panel can be used for both new construction and retrofit. Central Seam Plus is manufactured from Galvalume which offers two to four times the corrosion resistance of galvanized steel.
Pre-punched panels are available and self-engaging backup plates allow for easier installation.
- Available in 24 gauge with coverage widths of 18 and 24-inches.
- Factory applied sealant ensures a weather-tight and secure lap.
- Floating clips allow for thermal roof expansion and contraction during extreme temperature changes.
- Add DripX® for condensation control and vapor barrier elimination.
- Panels are factory notched for ease of installation at the endlap.
- Reversible end-for-end panels so each side of the roof can be installed simultaneously.
When you buy metal roofing, siding, or buildings from us, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.
Central Seam Plus comes with a Limited Lifetime warranty to help protect your investment in your home or business.
