A Traditional Metal Panel for any Application
CD 2000 is a proven choice for both metal siding and roofing applications. It has a traditional board and batten appearance providing both an attractive and cost effective option for a wide variety of agricultural, recreational, and light commercial uses. Additionally, its wide fastening surface allows for easy application and is engineered to last for decades.
APPLICATION: Roofing, Siding, Buildings
FASTENER SYSTEM: Exposed

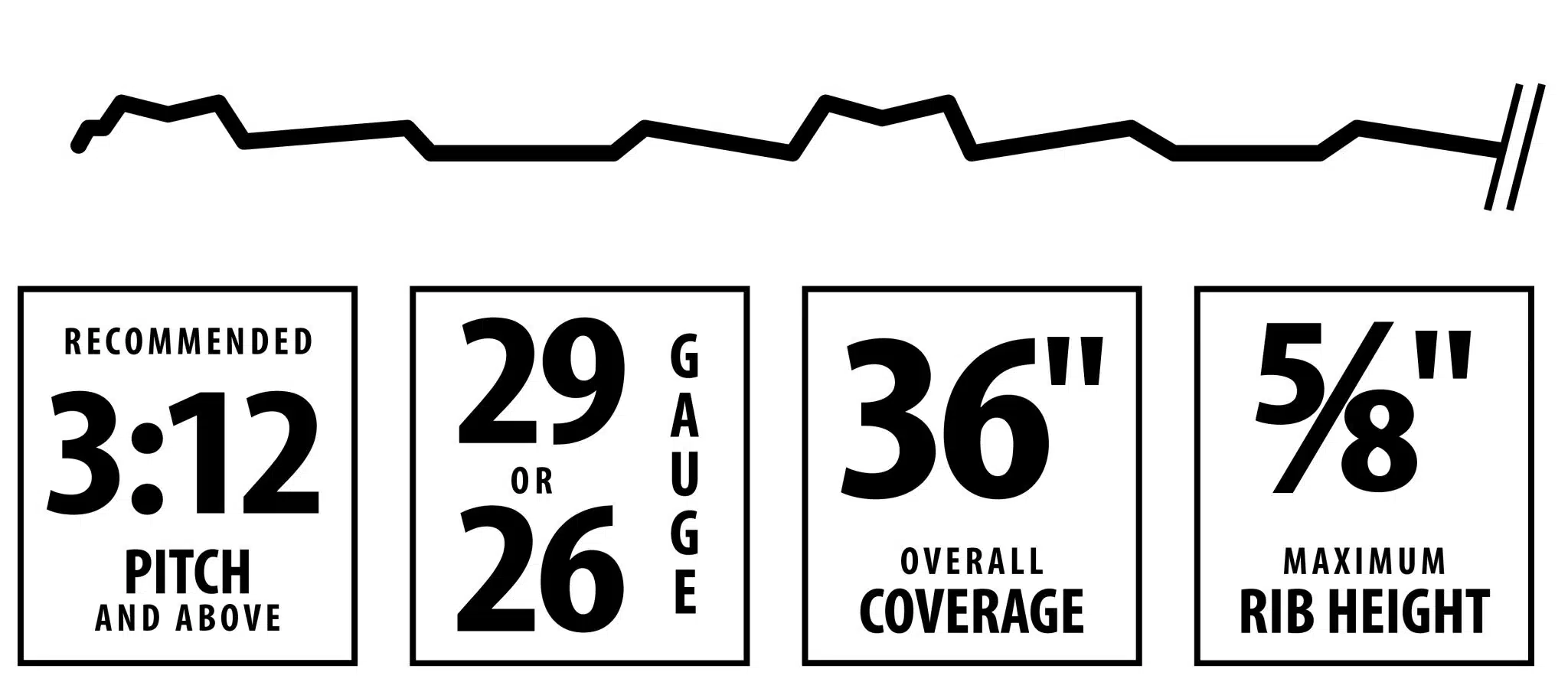

ROOF PITCH (minimum): 3:12
GAUGE: Ultra 26 gauge | Prime 29 gauge
PANEL COVERAGE WIDTH: 36″
RIB HEIGHT: 5/8″
DISTANCE FROM RIB-TO-RIB: 9″
STEEL THICKNESS: Ultra 0.0185″ | Prime 0.0150″
PAINT THICKNESS
- Top coat paint: .70 mil
- Top coat primer: .30 mil
- Bottom coat backer: .35 mil
- Bottom coat primer: .35 mil
TOTAL THICKNESS: Ultra 0.0202″ | Prime 0.0167″
RUST PROTECTANT SUBSTRATE: Galvalume AZ50 or Galvanized G90
STEEL STRENGTH: 80,000 PSI min
PAINT SYSTEM: SMP
TEXTURED COLORS AVAILABLE: No
WARRANTY
- Lifetime limited paint adhesion
- 30-yr. chalk and fade
- 50-yr. Galvalume perforation
The board-and-batten appearance of CD 2000® provides an attractive and cost-effective option for a variety of metal siding and roofing residential, agricultural, and light commercial uses. We offer three models of CD 2000 to fit any budget: Standard, Prime, and Ultra.
CD 2000 is available in Hartford, SD, Michigan City, IN, St. Peters, MO, and Claysburg, PA coverage areas.
- CD 2000 comes in 26 gauge and 29 gauge with a 36″ coverage width.
- Wide fastening surfaces make fastening quick and easy.
- Siphon groove prevents capillary action and stays watertight.
- Employs a drain channel that minimizes leaks from wind, rain, and snow.
- Matching trims and accessories are available.
The CD 2000 metal siding and roofing panel comes in a multitude of popular colors to complement your project and other finish materials.
When you buy metal roofing, siding, or buildings from us, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.
CD 2000 comes with a Limited Lifetime warranty helping protect your investment in home or business.
